Model name : Underground Crop Harvester (for cultivator/transfer type)
Harvest crop : Potato

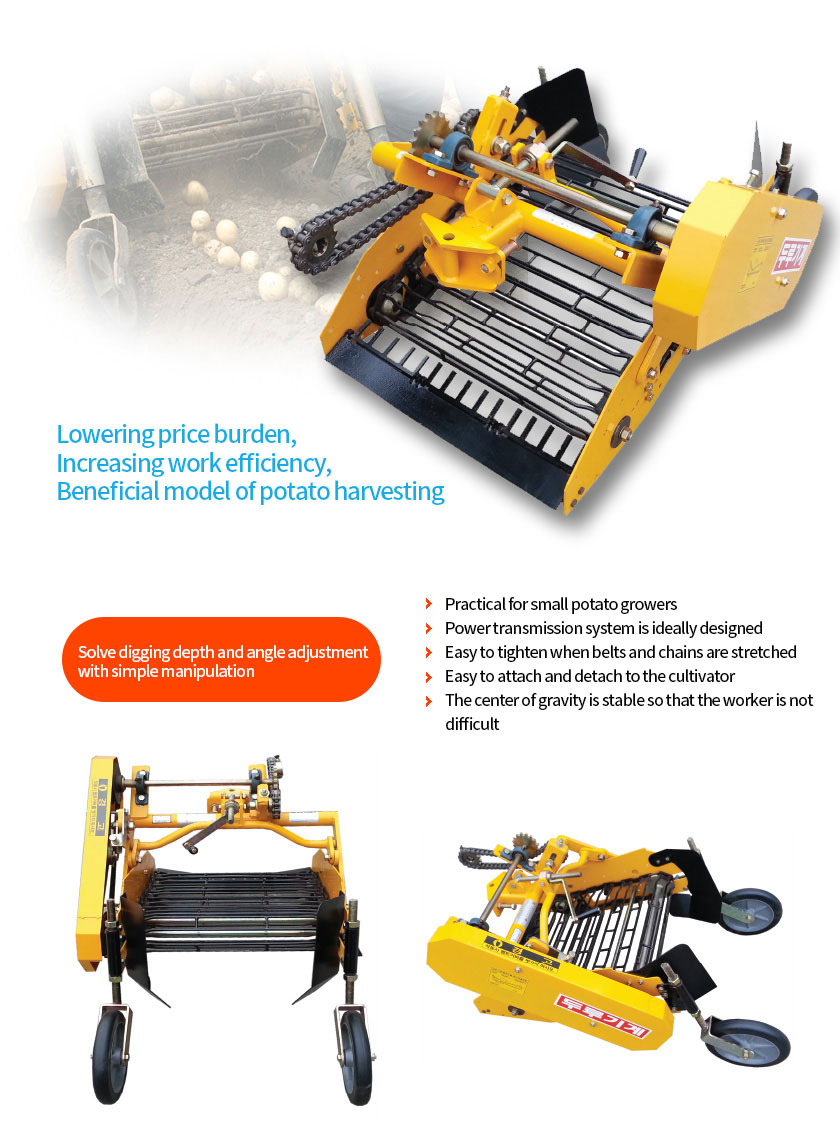

Characteristics
Specifications/Application
| Model Name | DR-600 | DR-650 | DR-700 | |
|---|---|---|---|---|
| Specification/Digging Width (cm) | 60 | 65 | 70 | |
| Size | Length(mm) | 1000 | 1000 | 1000 |
| Width(mm) | 760 | 810 | 860 | |
| Height(mm) | 730 | 730 | 730 | |
| Weight(kg) | 82 | 84 | 86 | |
Power transmission system |
Transmission method |
Belt + Chain type | Belt + Chain type | Belt + Chain type |
| Belt type | V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | |
Number of belt row |
1-row | 1-row | 1-row | |
| Recommended horsepower (HP) | 8 HP or more | 10 HP or more | 10 HP or more | |
| Applied crop (use) | Potato | Potato | Potato (for greenhouse) |
|
Working photograph/video
Potato harvesting scene
Potato harvesting scene
Potato harvesting scene
Potato harvesting scene
Potato harvesting scene
Potato harvesting scene
