Model name : Bed Former (for garlic and onion cultivation)
Use : Ridge formation + Vinyl mulching + Herbicide spraying (for garlic and onion)

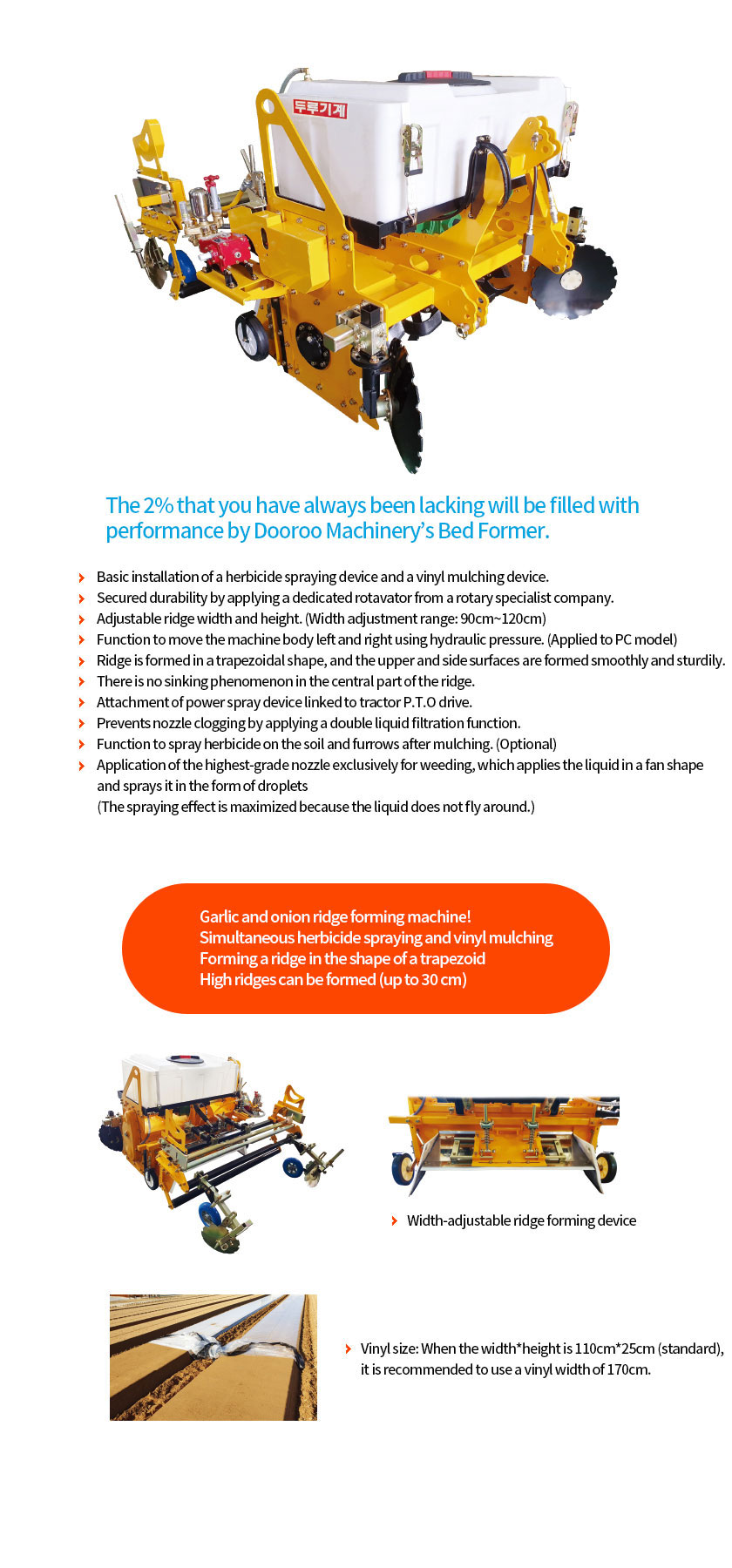

Characteristics
Specifications/Application
| Model Name | DRB-1200PC | |
|---|---|---|
| Specification | 1 ridge | |
| Size | Length(mm) | 2000 |
| Width(mm) | 2400 | |
| Height(mm) | 1430 | |
| Weight(kg) | 845 | |
| Rotovator | Rotation speed (rpm) | 168 |
| Size of rotary blades | 495 | |
| Shape of rotary blades | C-type | |
| Number of rotary blades | 30 | |
| Rotary shaft length (mm) | 1300 | |
| Recommended horsepower (HP) | 60 HP or more | |
| Ridge size (width * height) | 90~120cm*20~30cm | |
| Liquid tank capacity (L) | 300 | |
| Use/Characteristics | Garlic and onion ridge forming / Simultaneous herbicide spraying and vinyl mulching / Machine has transverse movement function |
|
Working photograph/video
Bed Former work scene
Bed Former work scene
